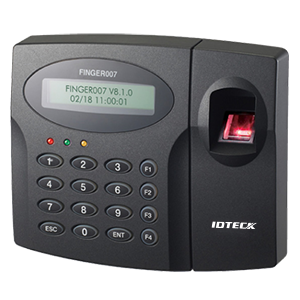

FINGERPRINT IDENTIFICATION TIME & ATTENDANCE/ ACCESS CONTROLLER

FINGER007SR

13.56MHz Fingerprint Identification Standalone Controller (RF/PIN / Fingerprint / Network)

  • Fingerprint
  • Tag
  • RFID Card
  • PIN
  • TCP/IP
  • ISO14443 Type A Smart Card
  • RS232
  • RS422
  • RS485
  • 34bit Wiegand
  • 13.56MHz
Twitter Facebook Bookmark Mail

Key Feature

  • Time Schedule Setting
  • Identification is made using only the fingerprint without using any cards or keypads.
  • Anti-Pass Back Mode
  • RS232, RS422, RS485, TCP/IP(Optional) communication
  • Users / Event Buffers : 50,000Users / 50,000 Events


• 1:1 Verification and 1: N Identification
• Identification Method : by PIN Key / by Auto Touch sensor
• 13.56 MHz Contactless Smart Card Reader and Fingerprint Recognition
• ISO14443 type A compatible
• Serial Number Read only
• Dual Function for Access Control and Time & Attendance
• 1,000 / 2,000 / 4,000 Fingerprint Users
• Dynamic Control of Memory up to 50,000 Users / up to 50,000 Event Buffers (Available on VA.1.0 and up)
 * Dynamic Control of Memory up to 4,000 Users / up to 26,000 Event Buffers (Available on V9.6.0)
• ID only Function for Fingerprint Unregisterable Person
• Standalone / Network Communication via RS232 / RS422 / RS485 (Max.32ch)
  - RS485 is not available on VA.1.0 and up
• TCP/IP (External LAN Converter required)
• 1ea of External Reader Port for Anti-passback Function: 34bit Wiegand, 4 / 8bit Burst for PIN
• Independent 4 Inputs and 4 Outputs including 2ea of 2 Form-C Relay Outputs
• High Protection from Scratch and ESD (Electro Static Discharge)
• High Quality Optical Sensor
• Dual Tamper Switches
• Alarm Event Monitoring using Tamper Switch (by Application Software)
• DURESS MODE FUNCTION

• Compatible Software: IDTECK STANDARD, TIME PRO, TIME BASIC
