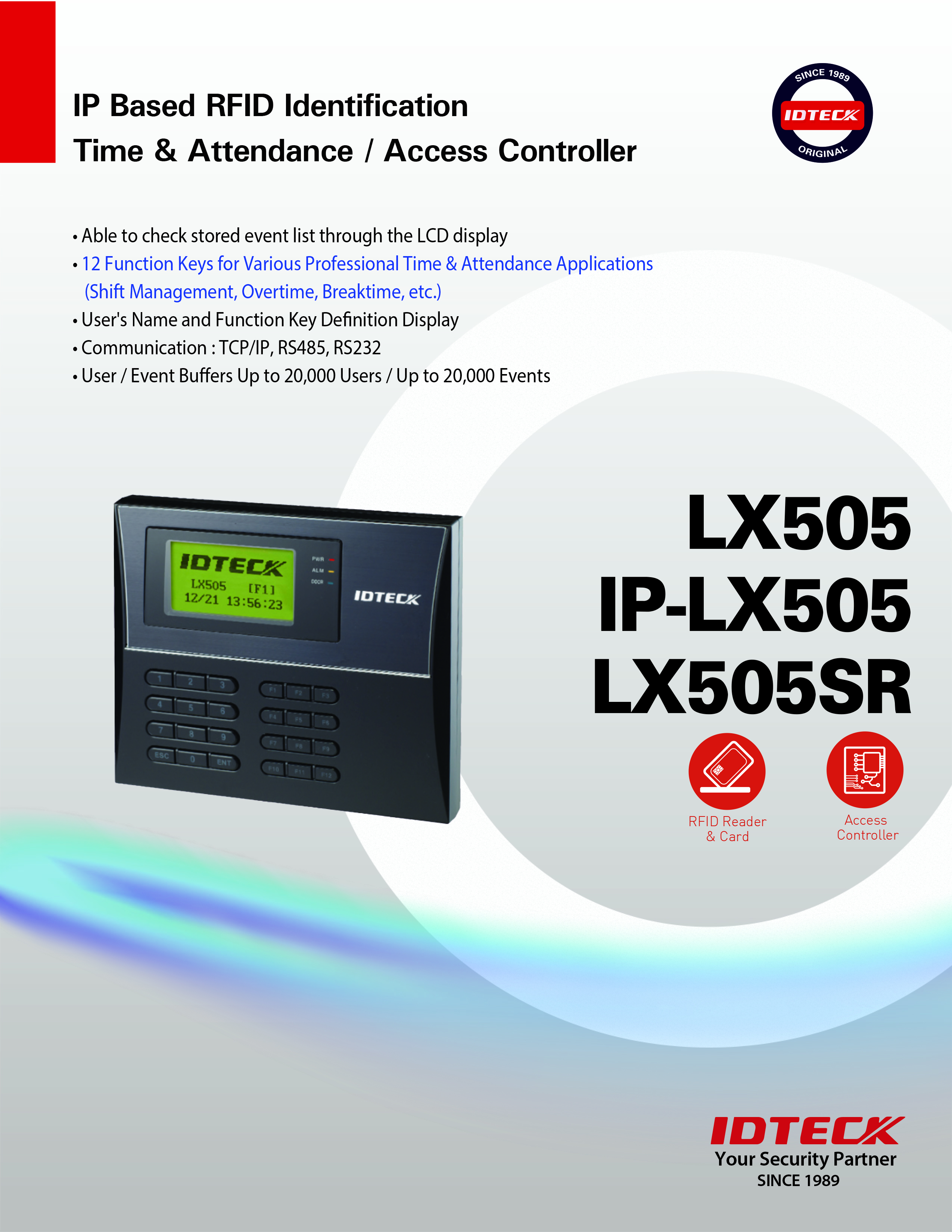

STANDALONE/NETWORK CONTROLLER

LX505

125KHz Comfortable & Easy Interface Proximity Standalone Controller (RF/PIN/ Network)

  • RFID Card
  • PIN
  • TCP/IP
  • Duress Mode
  • Videophone interface
  • ARM/DISARM
  • Multi Language
  • RS232
  • RS485
  • 26bit Wiegand
  • 125KHz
Twitter Facebook Bookmark Mail


System Features






Standalone Device with Internally Embedded Controller


Standalone or Network Operation without Connection to the PC


Graphic LCD Applied for Multi-Language Display and Voice Guide in Various Languages


12 Function Keys for Various T&A Applications
(Shift Management, Overtime and etc.)



User Name and Function Key Definition Display


Automatic System Reset via Self-Diagnosis (Watchdog Function)


Anti-Passback Function


Arm/Disarm Function


Duress Mode / 2 Men-Operation Function


Alerts when Door Opening Time Exceeds and Forced Door Open


Tamper Switch (2 EA)


Serial Port for Printer Connection


Advanced Security Time Schedule Configuration


Configuration Setting per ID
(Time Schedule, Accessible Reader, Door Opening Time, etc.)



Allows Registration of 10 Administrator Using the Fingerprint


3-Status Input Check (On/Off/Cut)


Dynamic Control of Memory Up to 20,000 Users / Up to 20,000 Event Buffers


Designed to Withstand ESD (Electro Static Discharge) Shock


Supports 26 Bit Wiegand Output Port (Usable to Reader)


Communication : RS-232, RS-485, Ethernet


Compatible Software : IDTECK STANDARD, TIME PRO
