Vehicle Access Control & Parking Management Application Case This lecture contains RF245's long range vehicle access control and parking management system installed in Garak Market, Seoul, Korea. Click on the SAMPLE icon to view the footage.

Reliable Stability
	* Stable Reading Range of Maximum 10M If used with IDA245/IDA245H2 Active Tag, reading range can be selected up to 10 M depending on the installation environment. RF245-2 : 2m(6.5ft), RF245-3 : 3m(10ft), RF245-5 : 5m(17ft), RF245-10 : 10m(32ft) * Prevents Overlapping Identification Error The tag of the registered vehicle is stored in the memory to prevent overlapping identification of tags. * Prevention of Multiple Reading in case of Two Vehicles Approaching the Gate at the Same Time Eliminates multiple readings as it only reads the vehicle’s tag that approaching the sensor (loop coil). * Multiple Card/Tag Identification Identifies 30 cards per second, which is suitable for logistic tracking when RF tags are attached to the logistics. * 90° One-directional Antenna for Long Range Identification (360° Omni-directional Antenna Selectable) Includes 90° one-directional antenna for stable long range identification. 360° omni-directional antenna is also available for asset tracking and personal tracking. * Reading Angle Adjustable If the reader hood is attached to the mounting bracket, it adjusts the reading angle to prevent unnecessary readings from the sides.
High Security Level
	* Encrypted Tag ID Communication By using the secured algorithms between the reader and the tag, it offers encrypted tag ID communication * Site Code Configuration Each tag is internally programmed with site code, which makes the readers to read the tags with configured site code. Different areas could be configured with different site codes to strengthen the security level by not allowing the readers to read unregistered tags.
Application Long Range Access Control (Hands Free Identification)   Parking Control (Vehicle Access Control)   Logistics Tracking / Fleet Management (Weighing Solution)   Personnel Tracking Asset Tracking
Various Integration
	* Supports Output for Bar-Gate Control Offers separate output for bar-gate control to operate the bar-gate control relay. Transistor Output supports up to 100mA of electric current and sends signals for one second. * Both 26 Bit Wiegand Output and RS232 Serial Output Supported Guarantees stable communication with all devices that supports 26 bit wiegand and RS232 communication.
Easy to Use
	* Outdoor Capacity (Weather-Proofed, IP65) RF245 can be installed outdoors due to its 100% weather-proof epoxy molding. * Automatic Card Configuration of 125 Channels The reader automatically configures default channel settings and site code when power is applied.
Utilized in Various Applications
	* Hands-Free Access Control * Parking Management * Asset Control * Personal Tracking * Logistics Tracking

---------------------------------------------------------------------------------

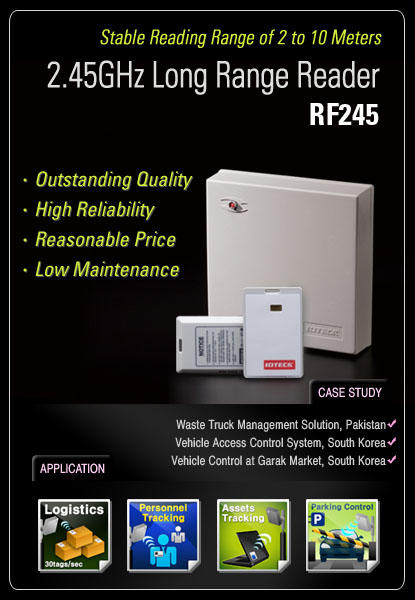

2.45GHz Long Range Reader : RF245-2 / RF245-3 / RF245-5 / RF245-10 - Easy to use and install - Stable read range of 2M, 3M, 5M, and 10M guaranteed

• Long Read Range Selectable RF245-2 : 2m(6.5feet), RF245-3 : 3m(10feet), RF245-5 : 5m(17 feet), RF245-10 : 10m(32feet) with IDA245/IDA245H2 Active Tag • 2.45GHz ISM Band • Encrypted tag ID and Secure Protocols between Reader and Tags • Multiple Tags Identification (30 Tags / Sec) • 90° One-directional Antenna • 360° Omni-directional Antenna (optional / Suitable for Asset Control and Personal Tracking) • 26bit Wiegand and RS232 Output Format • Direct Bargate Output (Open Collector : 100mA/1sec) • OTR (One Time Reading) and HOLD Control Input • Outdoor capacity : IP65 • Applications : Parking Control, Logistics Tracking, Asset Control, Personal Tracking
