| Read Range |
RF245-2(2m), RF245-3(3m),
RF245-5(5m), RF245-10(10m) |
| Frequency |
2.45GHz |
| Directivity |
Omni - directional |
| Antenna |
Monopole Antenna |
| Transmit Power |
IDA245: -20dBm / IDA245H2 : -10dBm |
| Modulation |
Encrypted GFSK |
| Wake-up Time |
Approx. 0.7sec |
| Site Code |
256Site Code (000~255) |
| Tag ID numbers |
Maximum 16 Millions ID Numbers per Site Code |
| Encryption |
16bit IDTECK's Secured Algorithm |
| Power |
Coin Cell Lithium Battery, 3V 150mAh, CR2025 |
| Battery Life Time |
Life-time |
| Operating Temperature |
-20°C to +65°C (-4°F to +149°F) |
|
Operating Humidity
|
10% to 90% relative humidity non-condensing
|
|
Dimension
(W x H x T)
|
2.1” x 3.4” x 0.18” (54mm x 86mm x 4.5mm)
|
|
Weight
|
20g (0.04lbs)
|
| Color |
Card Holder |
Transparency |
| Card |
White (Front), Beige(Rear) |
| Weight |
Card Holder |
11.5g (0.03lbs) |
| Card |
20g (0.04lbs) |
|
Material
|
Card Holder |
Polycarbonate
|
| Card |
ABS |
| Certificate |
FCC, CE, KCC, RoHS |
|

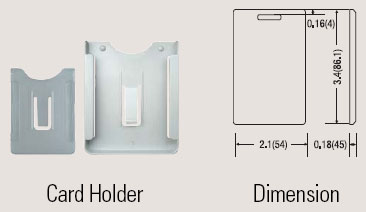

Dimension
|
 |
| |
|
|
|
|
