4 DOORS ACCESS CONTROL PANEL

iTDC

Advanced · Affordable · Stable
Up to 4 Door Access Control Panel
26bit Wiegand Reader Compatible

  • TCP/IP
  • Duress Mode
  • ARM/DISARM
  • Anti-Passback
  • 26/34 bit Wiegand
  • 2 Men-Operation
  • Time Schedule
  • ARM
  • 50,000 User
  • 4door
  • Event Buffers 14,000
  • RS232,422,485
  • Advanced Time Schedule
  • Watchdog Function
Twitter Facebook Bookmark Mail


System Features






Up to 4 Door Access Control Panel (EIO88 Expansion Board Required for Controlling 3~4 Doors)


iTDC(2 Door) + EIO88 Expansion Board = MAX 4 Door

Up to 50,000 User IDs / Up to 29,500 Event Buffers


Automatic System Reset via Self-Diagnosis (Watchdog Function)


Up to 15 Input Ports / Up to 15 Output Ports (With EIO88 Expansion Board)


Optimized Communication Function


Door Opening Time Configurable per User
- The door opening time is configurable by users, which is suitable for disabled or aged users



Door Opening and Closing Monitoring


Real-Time Monitoring of Access Door Status / User Access Status / Alarm Status using the Management Software


Anti-Passback Function / Duress Mode / 2-Men Operation Function


Arm/Disarm Function


2-Status Input Check (On/Off)


Advanced Time Schedule Configuration


Alerts when Door Opening Time Exceeds and Forced Door Open


Designed to Withstand ESD(Electro Static Discharge) Shock

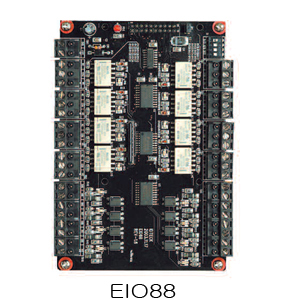

Supports the EIO88 (Expansion Board)
- 8 Inputs, 8 Outputs
- Required for Controlling 3~4 Doors


Manual Configuration Available for Standalone Operation

RS232 / RS422 / Ethernet(Optional) Communication


Compatible Software : IDTECK STANDARD
