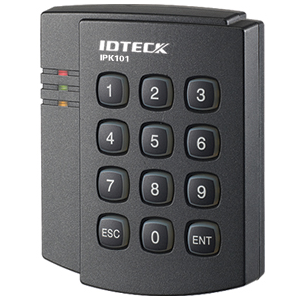

PROXIMITY READER /125KHZ

IPK101

ASK[EM] Format Proximity / PIN Card Reader Series

  • Tag
  • RFID Card
  • PIN
  • RS232
  • 26bit Wiegand
  • 125KHz-ASK
Twitter Facebook Bookmark Mail
• 125KHz Proximity / PIN Reader
• ASK [EM] Format
• Read Range: Up to 4 inch (10cm)
• User format available
• Output Format
 - Card :  26bit Wiegand (default) / RS232 and ABA Track II (optional) Output Format
 - Keypad : 26bit Wiegand, 4 / 8bit Burst for PIN Output Format Selectable
• 12 Numeric Keypads with Back Lighting
• External LED Control
• External Buzzer Control
• Tamper Switch
• Wall Mount (US, EU, Asian Gang Box Size)
• Reverse Polarity Protection
• Options: 3ea of External LED Control,Supervisory Signal
• Compatible Controller: iCON100, iTDC, Third Party Controller, ASK[EM] Format Standalone Controller.
