LONG RANGE SYSTEM

Twitter Facebook Bookmark Mail
  1. Introduce Stable Long Range Reading Guaranteed, Weatherproofed for both Indoor / Outdoor Use, Life-Time Use of Active Cards with Replaceable Batteries, Effectively Cuts Down the Management Cost and Time

    The Long Range System is designed to prohibit the entry of unidentified vehicles into the premises and provides an effective solution for vehicle / parking management with the integrations with parking ticket dispenser and fee calculation system. The long range system can be also applied in asset control, personal tracking and logistics / fleet management

  2. System Purpose
    • Cuts Down the Card Recognition Time as the Long Range Reader Identifies the Card from the Long Distance
    • Decrease in Cost for Management and Patrol Guards
    • Increase in Management Efficiency with Integration with Other Parking Related Systems
    • Enhanced Convenience as It Doesn’t Require the Opening of Vehicle Window for the Card Identification
  3. System Features
    • Read Range up to 10M (2M, 3M, 5M, 10M Selectable)
    • Direct Bar Gate Output (Open Collector : 1 Sec)
    • Applied in Asset Management, Personnel Tracking and Other Applications
    • Weatherproofed to Withstand Any Weather and Environment
    • OTR (One Time Reading) and HOLD Control Input for Multiple Entries
    • Multiple Tag Identification (30 Tags / Sec)
    • Encrypted Tag ID and Secure Protocols between Readers and Tags
    • Available in 90° One-Directional / 360° Omni-Directional Antenna
    • Life-Time Usable Active Cards with Replaceable Batteries

Application

응용분야 다이어그램 안내도

Configuration


  1. 2.45GHz Reader & Active Card – Reading Range up to 15 Meters

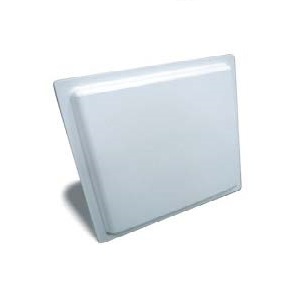

  1. 900 MHz Reader & Passive Card - Reading Range up to 15 meters

  1. 125KHz Reader & Passive Card – Reading Range up to 1 Meter

  1. 125KHz Reader & Passive Card – Reading Range up to 30cm
